For a professional and scalable setup, the Dimi Drive Pro is the ideal solution. By relocating control logic to a centralized electrical panel, it enables organized, robust, and efficient management of lighting and other smart functions.
Perfect for new constructions and major renovations, the Drive Pro mounts directly onto a standard DIN rail, ensuring a clean and service-friendly installation. It receives signals from any Dimi wireless keypad or sensor placed throughout the space, offering exceptional design flexibility without the need for rewiring.
Whether you’re managing dimming circuits or automating roller blinds and shutters, the Dimi Drive Pro delivers the reliable, centralized control needed for modern smart environments. It simplifies wiring, saves space, and integrates seamlessly with your battery-free Dimi ecosystem.
A single receiver can be paired with up to 10 wireless keypads or sensors, enabling multi-way control without traveler wires, ideal for both residential and commercial applications.
Technical Specifications:
- Power Supply: 110–240 V
- Channels: 1 or 6
- Maximum Load 1CH:
- On/Off: 1000W
- leading / trailing edge dimming: 300W
- Roller Blind/Shutter: 1000W
- 0–10V DC: 2 x 20mA
- Maximum Load 6CH:
- On/Off: 4x 500W + 2x 2200W LED / 4x 1000W + 2x 2200 INC
- IP Rating: IP20
- Wireless Range: Up to 80 m (Outdoor) / 25 m (Indoor)
- Color: White

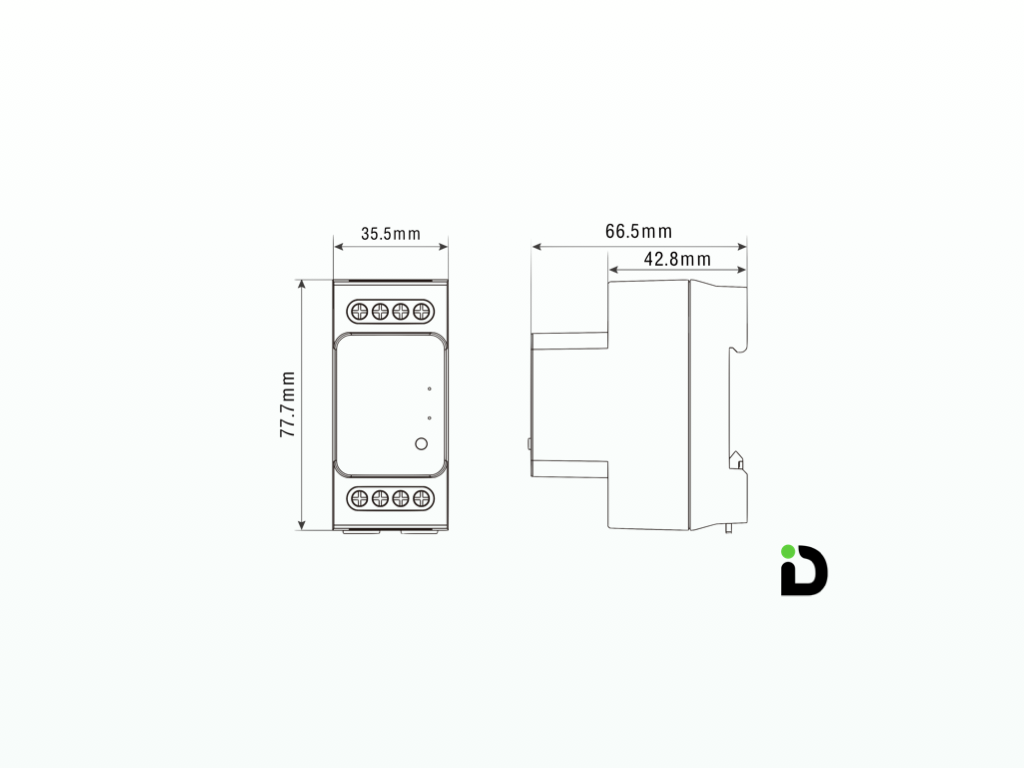

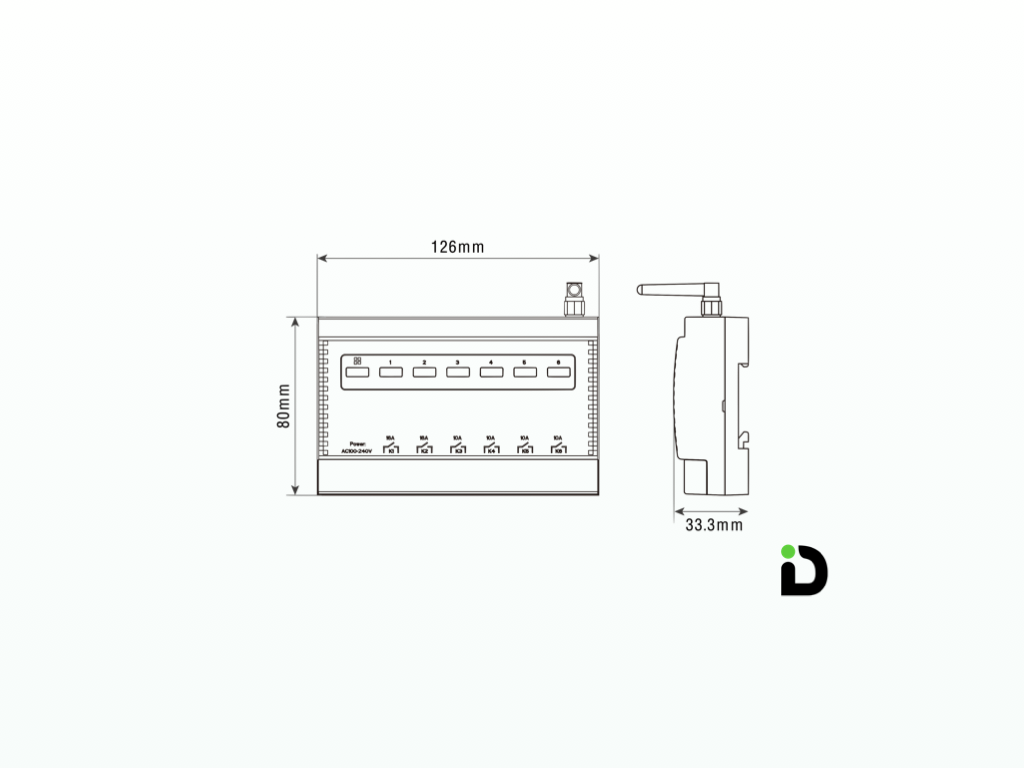

- Dimensions: 78 × 35.5 × 66.8 mm / 80 x 126 x 33.3 mm
