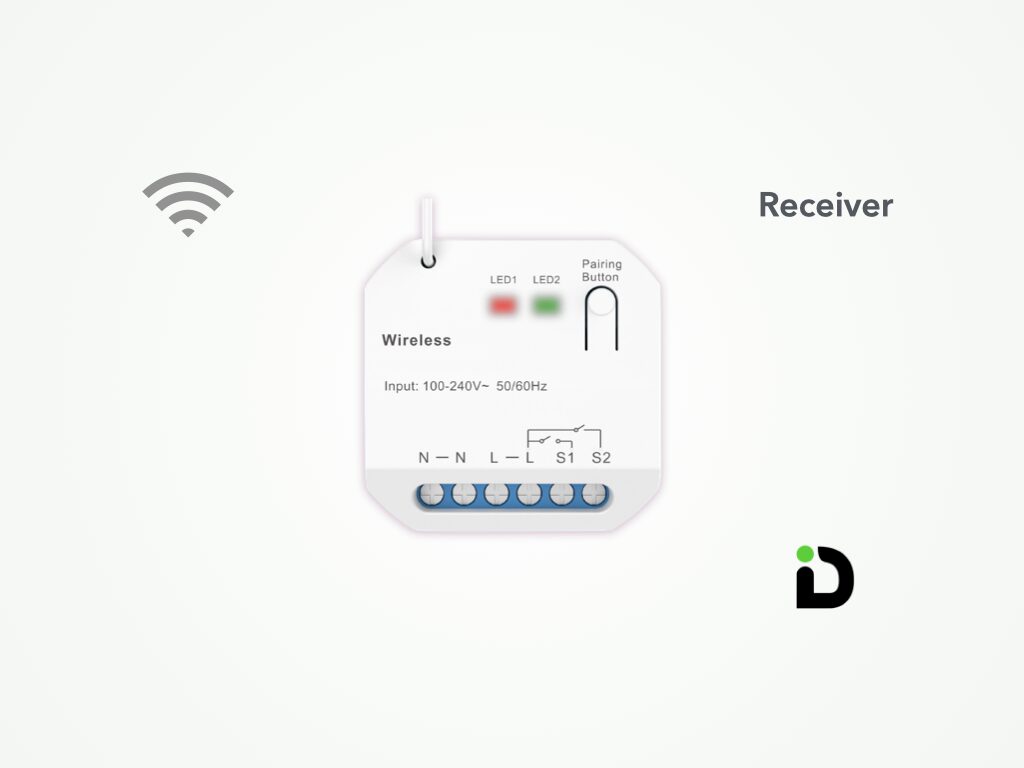

The Dimi Drive Mini receiver is the essential link between your battery-free Dimi keypad and your lighting or connected devices. Compact and powerful, it offers exceptional flexibility, ideal for both residential and commercial applications.
Its slim design allows for flush installation inside walls, ceilings, or electrical boxes, keeping it completely out of sight. Once in place, it reliably receives signals from any paired Dimi wireless keypad or sensor.
Supporting a wide range of control protocols, including On/Off, TRIAC dimming, 0–10V and motorized functions like roller blinds and shutters, the Dimi Drive Mini receiver is capable of managing everything from simple bulbs to sophisticated architectural lighting fixture.
A single receiver can be paired with up to 10 wireless keypads or sensors, enabling multi-way control without the need for traveler wires, perfect for any application.
Technical Specifications:
-
Power Supply: 110–240 V
-
Maximum Load:
-
On/Off: 500W (LED) / 1000W (Incandescent)
-
TRIAC Dimming: 150W (LED)
-
Roller Blind/Shutter: 720W
-
0–10V DC: 50mA
-
-
IP Rating: IP20
-
Wireless Range: Up to 80 m (Outdoor) / 25 m (Indoor)
-
Color: White
-

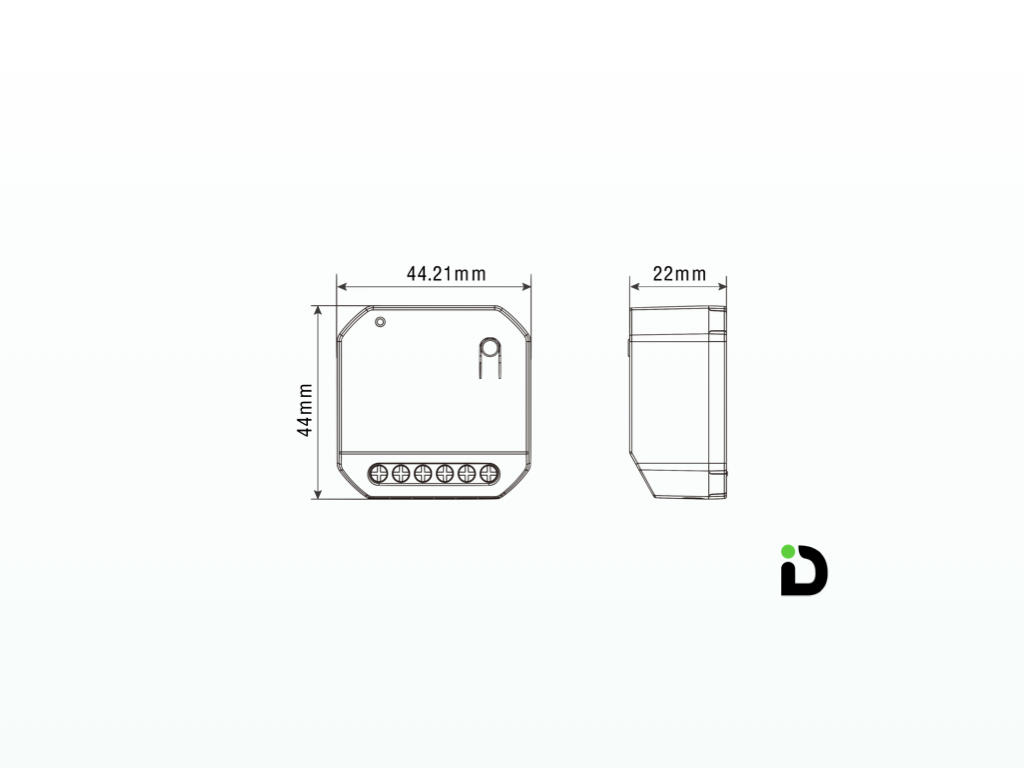

Dimensions: 44 × 44 × 22 mm
